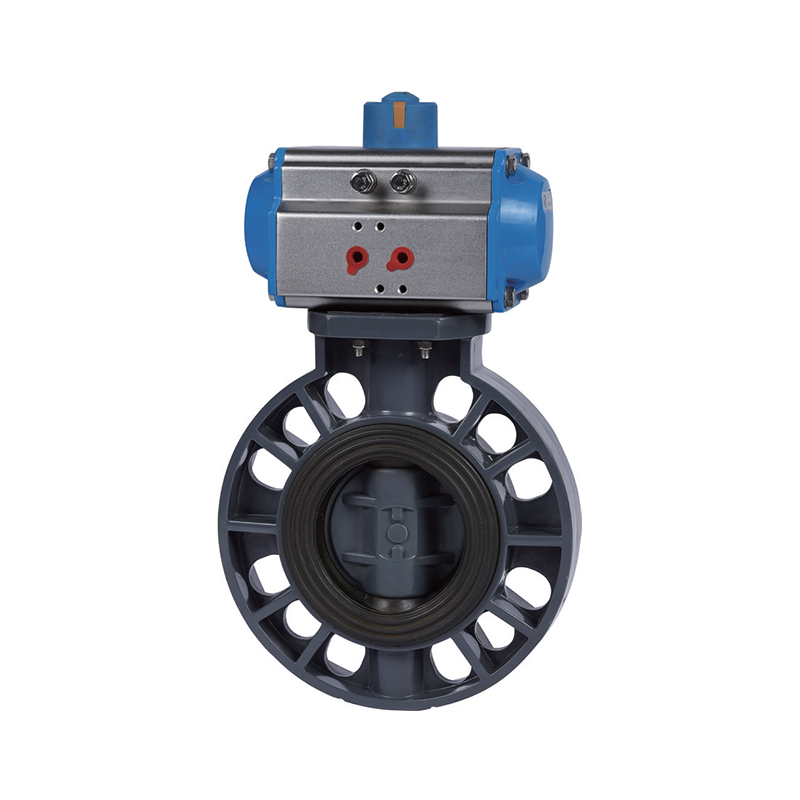

SCH8O/DIN UPVC/CPVC Pneumatic Butterfly Valve

The pneumatic butterfly valve adopts a wafer-type design with a compact structure, small size, and lightweight design, making it convenient to install, transport, and maintain. It is driven by a pneumatic actuator that rotates the valve stem, enabling the disc to rotate quickly within the valve body by 90°, achieving rapid opening and closing with fast response. It precisely controls flow according to system requirements, providing stable and reliable throttling, cutoff, and isolation functions. The valve uses elastic sealing materials such as rubber or PTFE to ensure effective leakage prevention when closed. The pneumatic butterfly valve is suitable for various media such as water, oil, and steam and operates within a wide range of pressures and temperatures, meeting the demands of different piping systems.

Kontaktirajte nas

Prethodno：Električni ventil za leptir
Sljedeći：SCH8O/DIN UPVC/CPVC Electric Flange Ball Valve

parametar aplikacija Tehnički standardi

(1) Material: UPVC, CPVC
(2) Size: 2"-12", DN50-DN300, dn63-dn315
(3) Standards: ANSI, DIN
(4) Connection: flange
(5) Work pressure: 150PSI, 1.0MPa
(6) Operating temperature: UPVC(-10°C-60°C), CPVC(-10°C-90°C)
(7) Minimum air pressure: 45PSI, 0.4MPa
(8) Body color: UPVC (dark gray), CPVC (light gray)

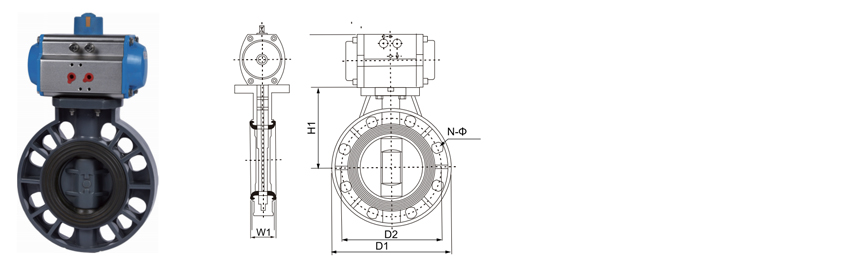

SIZE/NOM.		dn63	dn75	dn90	dn110	dn140	dn160	dn225	dn280	dn315
		(DN50)	(DN65)	(DN80)	(DN100)	(DN125)	(DN150)	(DN200)	(DN250)	(DN300)
		(2")	(2-1/2")	(3")	(4")	(5")	(6")	(8")	(10")	(12")
D1		160	180	196	228	258	287	344	411	490
D2	DIN	125	145	160	180	210	240	295	350	400
	ANSI	121	140	152	191	216	241	298	362	346
	JIS	120	140	150	175	210	240	290	355	400
N-Φ	DIN	4-Φ18	4-Φ18	8-Φ18	8-Φ18	8-Φ18	8-Φ22	8-Φ22	8-Φ22	12-Φ22
	ANSI	4-Φ19	4-Φ19	4-Φ19	4-Φ19	8-Φ22	8-Φ22	8-Φ22	12-Φ25	12-Φ25
	JIS	4-Φ19	4-Φ19	8-Φ19	8-Φ19	8-Φ23	8-Φ23	12-Φ23	12-Φ25	16-Φ25
H1		100	110	132	155	167	180	225	260	280
W1		43	46	49	54	64	70	88	98	108
Torque (N · M)		10	10	15	22	40	45	65	-	-

Actuator working mode double-acting/single-acting (NC normally closed, NO normally open)

Specification	63	75	90	110	140	160	225	280	315
Specification	2"	2 1/2"	3"	4"	5"	6"	8"	10"	12"
Controlling stress	4~8
NAMUR standard air source interface	G 1/4"
Double acting actuator models	TBN052D	TBN063D	TBN075D	TBN083D	TBN092D	TBN105D	TBN7105D	TBN125D	TBN140D
Single acting actuator models	TBN063SK	TBN075SK	TBN083SK	TBN092SK	TBN105SK	TBN125SK	TBN125SK	TBN140SK	TBN160SK
