{config.cms_name} Dom / Proizvodi / UPVC/CPVC okovi / SCH8O/DIN UPVC/CPVC Flange Gasket
Zheyi Pipeline (Wuhan) Co., Ltd.
izrađeno po narudžbi SCH8O/DIN UPVC/CPVC Flange Gasket Za prehrambenu industriju/automobilsku/elektroničku
SCH8O/DIN UPVC/CPVC Flange Gasket

SCH8O/DIN UPVC/CPVC Flange Gasket

UPVC/CPVC flange gaskets are precisely designed to maintain sealing performance under high pressure and temperature fluctuations, effectively preventing medium leakage. Their lightweight nature reduces installation and maintenance difficulty, while the environmentally friendly, non-toxic material aligns with modern green building standards.

These gaskets are corrosion-resistant, heat-resistant, and chemically stable, making them ideal for industrial and residential applications such as water supply, chemical processing, and food production pipelines.

Kontaktirajte nas
  • SCH8O/DIN UPVC/CPVC Flange Gasket
Prethodno：SCH8O/DIN UPVC/CPVC Reducer Bushing
Sljedeći：SCH8O/DIN UPVC/CPVC Blind Flange

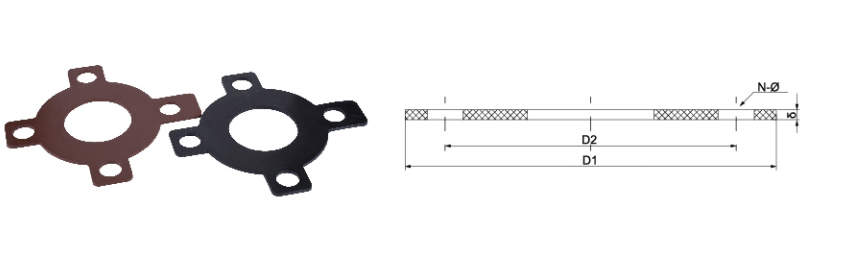

parametar aplikacija Tehnički standardi

  • SIZE/NOM

    dn20

    dn25

    dn32

    dn40

    dn50

    dn63

    dn75

    dn90

    dn110

    dn140

    dn160

    dn225

    dn280

    dn315

    (DN15)

    (DN20)

    (DN25)

    (DN32)

    (DN40)

    DN50)

    (DN65)

    (DN80)

    (DN100)

    (DN125)

    (DN150)

    (DN200)

    (DN250)

    (DN300)

    (1/2")

    (3/4")

    (1")

    (1-1/4")

    (1-1/2")

    (2")

    (2-1/2")

    (3")

    (4")

    (5")

    (6")

    (8")

    (10")

    (12")

    DIN

    D1

    95

    105

    115

    140

    150

    165

    185

    200

    220

    250

    285

    340

    395

    445

    D2

    65

    75

    85

    100

    110

    125

    145

    160

    180

    210

    240

    295

    350

    400

    δ

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    N-Φ

    4-Φ14

    4-Φ14

    4-Φ14

    4-Φ18

    4-Φ18

    4-Φ18

    4-Φ18

    8-Φ18

    8-Φ18

    8-Φ18

    8-Φ22

    8-Φ22

    12-Φ22

    12-Φ22

    ANSI

    D1

    89

    98

    108

    117

    128

    155

    178

    192

    229

    254

    284

    343

    406

    481

    D2

    61

    70

    79

    89

    98

    121

    140

    152

    191

    216

    241

    298

    362

    432

    δ

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    N-Φ

    4-Φ16

    4-Φ16

    4-Φ16

    4-Φ16

    4-Φ16

    4-Φ19

    4-Φ19

    4-Φ19

    4-Φ19

    8-Φ22

    8-Φ22

    8-Φ22

    12-Φ24

    12-Φ24

    JIS

    D3

    70

    75

    90

    100

    105

    120

    140

    150

    175

    210

    240

    290

    355

    400

    D2

    1

    35

    42.5

    48.5

    61

    73

    90

    105

    132

    158

    186

    238

    289

    341

    δ

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    N-Φ

    4-Φ15

    4-Φ15

    4-Φ19

    4-Φ19

    4-Φ19

    4-Φ19

    4-Φ19

    8-Φ19

    8-Φ19

    8-Φ23

    8-Φ23

    12-Φ23

    12-Φ25

    16-Φ25
Preporučeni proizvodi
Društvo
Zheyi Pipeline (Wuhan) Co., Ltd.
Zheyi Pipeline (Wuhan) Co., Ltd.

ZHEYI Group Da Kina SCH8O/DIN UPVC/CPVC Flange Gasket Za prehrambenu industriju/automobilsku/elektroničku dobavljač i izrađeno po narudžbi SCH8O/DIN UPVC/CPVC Flange Gasket Za prehrambenu industriju/automobilsku/elektroničku tvornica. Osnovani smo 2007. godine s fokusom na istraživanje i razvoj, proizvodnju, prodaju i servis industrijskih cijevi od CPVC-a i UPVC-a. Tvrtka je dobila niz certifikata, uključujući licencu za proizvodnju posebne opreme, licencu za higijenu proizvoda povezanih s vodom provincije Zhejiang, certifikat sustava upravljanja kvalitetom IS09001, certifikat sustava upravljanja okolišem IS014001 i certifikat sustava upravljanja zdravljem i sigurnošću na radu IS045001. Tvrtka ima više od 50 neovisnih prava intelektualnog vlasništva i prava na samostalni uvoz i izvoz. Kako bi pružila raznolike proizvode i bolje usluge, tvrtka je uvela naprednu tehnologiju, alatnu opremu te jedinstvene sirovine i sustave upravljanja iz Njemačke i Sjedinjenih Država. Tijekom godina, naši proizvodi su se široko koristili u cjevovodnom transportu kiselih i lužinskih tekućina, ultračiste vode, vode za piće, čiste vode elektroničke kvalitete i industrijskih otpadnih voda u kemijskoj, metalurškoj, fotonaponskoj, nuklearnoj energetici, industriji litijevih baterija, elektroničkih poluvodiča, prehrambenoj, medicinskoj, automobilskoj, industriji pročišćavanja vode i drugim industrijama. Trenutno, ZHEYI Grupa ima više od 30 prodajnih tvrtki diljem zemlje, a sve vrste proizvoda izvoze se u Europu, Ameriku, jugoistočnu Aziju i druge zemlje i regije, te su izuzetno popularni kod domaćih i stranih kupaca.

Potvrda o časti
  • ISO 9001: 2015
  • ISO 14001: 2015
  • ISO 45001: 2018
  • ISO 45001: 2018
  • ISO: 45001-2018 EN
  • Nacionalno visokotehnološko poduzeće
  • Potvrda
  • Potvrda
Vijesti
Ostavite poruku
  • Zheyi Pipeline (Wuhan) Co., Ltd.
    Stroga kontrola kvalitete

    ZHEYI Grupa se pridržava načela "kvaliteta na prvom mjestu", usvaja međunarodno naprednu opremu i visokokvalitetne sirovine, strogo kontrolira svaku kariku proizvodnje i posvećena je pružanju cjevovodnih proizvoda s izvrsnim performansama i izvrsnim izgledom.

    Tvrtka koristi najnapredniju proizvodnu opremu i visokokvalitetne materijale, uključujući japanski Sekisui i američki Lubrizol. "ZHEYI" savršeno kombinira izvrsnu proizvodnu tehnologiju s profesionalnim upravljanjem, a svaki proizvod prolazi strogu kontrolu kvalitete - od proizvodnje, inspekcije do konačne isporuke, osiguravajući savršenu kombinaciju izgleda i funkcionalnosti.

  • Zheyi Pipeline (Wuhan) Co., Ltd.
    Precizno testiranje performansi
    U ZHEYI-ju, svaki je proizvod pomno izrađen, ne samo s fokusom na izvrstan estetski dizajn, već i uvijek posvećen izvrsnoj intrinzičnoj kvaliteti. Strogo testiranje performansi osigurava da proizvod može održati stabilnost i izdržljivost čak i u teškim uvjetima.:

    ● Ispitivanje gustoće: Mjeri gustoću materijala kako bi se osigurala ujednačenost i stabilnost struktura.
    ● Vicatovo ispitivanje temperature omekšavanja: procjenjuje stupanj omekšavanja materijala pod uvjetima visoke temperature kako bi se osigurala otpornost proizvoda na deformacije u različitim okruženjima.
    ● Ispitivanje u pećnici: simulira dugotrajnu otpornost na toplinu i provjerava sposobnost proizvoda da dugotrajno izdrži visoke temperature.
    ● Hidrostatski test: Procijenite čvrstoću cijevi pod uvjetima visokog tlaka kako biste osigurali sigurnost i pouzdanost proizvoda.
    ● Ispitivanje udarnim čekićem: Ispitajte otpornost proizvoda na udarce tijekom transporta, ugradnje i svakodnevne upotrebe.

SCH8O/DIN UPVC/CPVC Flange Gasket Znanje o industriji

How to choose UPVC/CPVC flange gaskets correctly? Guide to materials, sizes and media compatibility

UPVC (unplasticized polyvinyl chloride) and CPVC (chlorinated polyvinyl chloride) flange gaskets are widely used in many industries due to their excellent corrosion resistance, chemical stability and cost-effectiveness. The correct selection of gaskets requires comprehensive consideration of material properties, size matching and media compatibility to ensure sealing reliability and system safety. The following are key selection points and industry application analysis:

1. Material selection: UPVC vs. CPVC
UPVC: Suitable for normal temperature (0°C~60°C) and low pressure scenarios, with excellent acid and alkali resistance, but poor temperature resistance. Commonly used in pure water delivery systems in the drinking water (Safe Drinking Water), industrial water treatment (Industrial Water Treatment) and electronic semiconductor (Electronic Semiconductor) industries.
CPVC: High temperature resistance (up to 93°C or even higher), higher compressive strength, suitable for high temperature corrosive media. Widely used in pickling process of photovoltaic industry, waste acid recovery of metallurgy, and auxiliary cooling system of nuclear power plant.

2. Size and structure matching
Flange standard: Make sure that the gasket size matches the flange standard (such as ANSI, DIN, JIS) to avoid leakage due to tolerance.
Sealing surface type: Flat flange (FF) often uses rubber gaskets, and convex flange (RF) needs to be matched with gaskets with inner rings, especially in pipelines with high cleanliness requirements in the medicine industry.

3. Key considerations for media compatibility
The fluid media of different industries vary greatly and need to be selected in a targeted manner:
Strong acid/alkali environment (such as industrial wastewater treatment): CPVC is preferred, which is resistant to corrosion such as hydrofluoric acid and concentrated sulfuric acid.
High-purity water/ultrapure water (such as electronic semiconductors): UPVC gaskets must be free of precipitates to avoid water pollution.
Oxidizing media (such as etching solution in the photovoltaic industry): CPVC has better oxidation resistance than UPVC.
High-temperature and high-pressure water vapor (such as auxiliary systems of nuclear power plants): CPVC gaskets must pass pressure resistance and aging resistance tests.

4. Examples of industry application scenarios
Drinking Water: UPVC gaskets comply with FDA/NSF standards to ensure non-toxic and odorless.
Medicine: High-purity CPVC gaskets that withstand CIP/SIP cleaning processes.
Metallurgy: CPVC resists corrosion from smelting waste acids (such as hydrochloric acid and nitric acid).

5. Precautions
Installation preload: Avoid excessive compression that may cause cracking of UPVC/CPVC gaskets.
Thermal expansion compensation: Thermal displacement margins must be reserved for high-temperature conditions (such as photovoltaic or nuclear energy).
