SCH8O/DIN UPVC/CPVC Pneumatic Ball Valve

UPVC/CPVC materials exhibit corrosion resistance, making them suitable for transporting various corrosive media such as acidic and alkaline solutions and chemical liquids. The UPVC/CPVC pneumatic ball valve features a compact structure, small footprint, and convenient installation and maintenance.

The valve’s opening and closing are controlled by a pneumatic device, offering easy and fast operation, suitable for industrial automation and remote control. High-quality sealing materials ensure good sealing performance when the valve is closed, preventing media leakage.

Kontaktirajte nas

Prethodno：UPVC/CPVC Električni ventili
Sljedeći：SCH8O/DIN UPVC/CPVC košarasti filter

parametar aplikacija Tehnički standardi

(1) Material: UPVC, CPVC
(2) Dimensions: 1/2"- 4", DN15-DN100, DN20-DN110
(3) Standards: ANSI, DIN
(4) Connection: Socket
(5) Work pressure: 150PSI, 1.0MPa
(6) Operating temperature: UPVC(-10°C-60°C), CPVC(-10°C-90°C)
(7) Minimum air pressure: 45PSI, 0.4MPa
(8) Body color: UPVC (dark gray), CPVC (light gray)

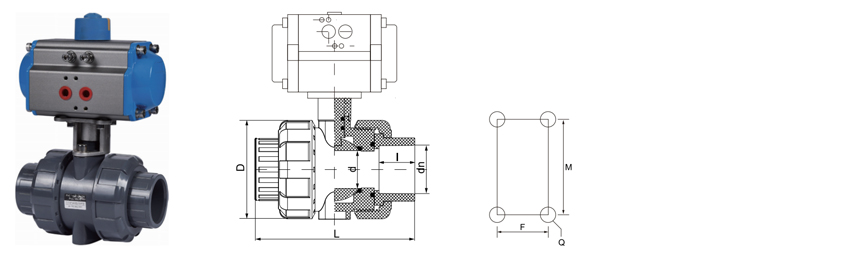

SIZE/NOM.		dn20	dn25	dn32	dn40	dn50	dn63	dn75	dn90	dn110
		(DN15)	(DN20)	(DN25)	(DN32)	(DN40)	(DN50)	(DN65)	(DN80)	(DN100)
		(1/2")	(3/4")	(1")	(1-1/4")	(1-1/2")	(2")	(2-1/2")	(3")	(4")
DIN ANSI JIS	I	22	22	25	28	31	38	44	51	61
	D	56	63	75	88	99	117	141	164	202
	L	103	117	133	149	165	190	235	270	320
	M	31	33	40	52	52	70	84	84	121
	F	-	-	-	-	-	-	45	45	49
	Q	2×M6	2×M6	2×M6	2×M8	2×M8	2×M8	4×M10	4×M10	4×M10
	Torque (N ·M)	2	3	4	6	8	12	18	26	35

Actuator working mode double-acting/single-acting (NC normally closed, NO normally open)

Specification	20	25	32	40	50	63	75	90	110
Specification	1/2"	3/4"	1"	11/4"	11/2"	2"	2 1/2"	3"	4"
Controlling stress	4~8
NAMUR standard air source interface	G 1/4"
Double acting actuator models	TBN032D	TBN032D	TBN032D	TBN052D	TBN052D	TBN63D	TBN75D	TBN83D	TBN92D
Single acting actuator models	TBN052SK	TBN052SK	TBN052SK	TBN063SK	TBN063SK	TBN75SK	TBN83SK	TBN92SK	TBN105SK

Društvo

Zheyi Pipeline (Wuhan) Co., Ltd.

ZHEYI Group Da Kina SCH8O/DIN UPVC/CPVC Pneumatic Ball Valve Za prehrambenu industriju/automobilsku/elektroničku dobavljač i izrađeno po narudžbi SCH8O/DIN UPVC/CPVC Pneumatic Ball Valve Za prehrambenu industriju/automobilsku/elektroničku tvornica. Osnovani smo 2007. godine s fokusom na istraživanje i razvoj, proizvodnju, prodaju i servis industrijskih cijevi od CPVC-a i UPVC-a. Tvrtka je dobila niz certifikata, uključujući licencu za proizvodnju posebne opreme, licencu za higijenu proizvoda povezanih s vodom provincije Zhejiang, certifikat sustava upravljanja kvalitetom IS09001, certifikat sustava upravljanja okolišem IS014001 i certifikat sustava upravljanja zdravljem i sigurnošću na radu IS045001. Tvrtka ima više od 50 neovisnih prava intelektualnog vlasništva i prava na samostalni uvoz i izvoz. Kako bi pružila raznolike proizvode i bolje usluge, tvrtka je uvela naprednu tehnologiju, alatnu opremu te jedinstvene sirovine i sustave upravljanja iz Njemačke i Sjedinjenih Država. Tijekom godina, naši proizvodi su se široko koristili u cjevovodnom transportu kiselih i lužinskih tekućina, ultračiste vode, vode za piće, čiste vode elektroničke kvalitete i industrijskih otpadnih voda u kemijskoj, metalurškoj, fotonaponskoj, nuklearnoj energetici, industriji litijevih baterija, elektroničkih poluvodiča, prehrambenoj, medicinskoj, automobilskoj, industriji pročišćavanja vode i drugim industrijama. Trenutno, ZHEYI Grupa ima više od 30 prodajnih tvrtki diljem zemlje, a sve vrste proizvoda izvoze se u Europu, Ameriku, jugoistočnu Aziju i druge zemlje i regije, te su izuzetno popularni kod domaćih i stranih kupaca.

Potvrda o časti

Vijesti

Double Containers Depart for South America – ZHEYI Group E...
Aug 31,2026
Recently, ZHEYI Group successfully completed the shipment of two full containers, both loaded and dispatched simultaneously, setting sail for the South American market. This milestone marks another step forward in our...
saznajte više
Future Trends in CPVC Piping Systems: What Industrial Buye...
Aug 26,2026
Future trends in CPVC piping systems are not only about the pipe itself. They are about system-level specification: better high-temperature compound data, automation-ready valves, tighter global standards, and clos...
saznajte više
Injection Molding Process for CPVC Fittings: From Resin to...
Aug 20,2026
When a piping contractor opens a box of CPVC elbows on a chemical plant job site and sees a few pieces with slightly dull surfaces or faint streaks, the cause is rarely the raw material. It is almost always the pro...
saznajte više

Ostavite poruku

Stroga kontrola kvalitete

ZHEYI Grupa se pridržava načela "kvaliteta na prvom mjestu", usvaja međunarodno naprednu opremu i visokokvalitetne sirovine, strogo kontrolira svaku kariku proizvodnje i posvećena je pružanju cjevovodnih proizvoda s izvrsnim performansama i izvrsnim izgledom.

Tvrtka koristi najnapredniju proizvodnu opremu i visokokvalitetne materijale, uključujući japanski Sekisui i američki Lubrizol. "ZHEYI" savršeno kombinira izvrsnu proizvodnu tehnologiju s profesionalnim upravljanjem, a svaki proizvod prolazi strogu kontrolu kvalitete - od proizvodnje, inspekcije do konačne isporuke, osiguravajući savršenu kombinaciju izgleda i funkcionalnosti.
Precizno testiranje performansi

U ZHEYI-ju, svaki je proizvod pomno izrađen, ne samo s fokusom na izvrstan estetski dizajn, već i uvijek posvećen izvrsnoj intrinzičnoj kvaliteti. Strogo testiranje performansi osigurava da proizvod može održati stabilnost i izdržljivost čak i u teškim uvjetima.:

● Ispitivanje gustoće: Mjeri gustoću materijala kako bi se osigurala ujednačenost i stabilnost struktura.
● Vicatovo ispitivanje temperature omekšavanja: procjenjuje stupanj omekšavanja materijala pod uvjetima visoke temperature kako bi se osigurala otpornost proizvoda na deformacije u različitim okruženjima.
● Ispitivanje u pećnici: simulira dugotrajnu otpornost na toplinu i provjerava sposobnost proizvoda da dugotrajno izdrži visoke temperature.
● Hidrostatski test: Procijenite čvrstoću cijevi pod uvjetima visokog tlaka kako biste osigurali sigurnost i pouzdanost proizvoda.
● Ispitivanje udarnim čekićem: Ispitajte otpornost proizvoda na udarce tijekom transporta, ugradnje i svakodnevne upotrebe.

SCH8O/DIN UPVC/CPVC Pneumatic Ball Valve Znanje o industriji

Application in the chemical industry: Advantages of UPVC/CPVC pneumatic ball valves in corrosive fluid control

In the chemical and related industrial fields, the delivery and control of corrosive fluids (such as acids, alkalis, saline solutions, organic solvents, etc.) place strict requirements on valve materials. UPVC (unplasticized polyvinyl chloride) and CPVC (chlorinated polyvinyl chloride) pneumatic ball valves have become the preferred solutions for many key industries due to their excellent corrosion resistance, lightweight structure and automatic control advantages. The following are its typical application scenarios and core advantages:

1. Chemical and industrial water treatment
Industrial wastewater/industrial water treatment: UPVC/CPVC valves can withstand wastewater containing chlorine, fluoride and strong acids (such as sulfuric acid and hydrochloric acid), avoid electrochemical corrosion problems of metal valves, and extend service life.
Photovoltaic industry: In the manufacture of solar panels, it is used to control the precise delivery of etching solutions (such as hydrofluoric acid) to ensure that high-purity fluids are contaminated.
Electronic semiconductors: Suitable for ultrapure water (UPW) systems and chemical (such as ammonia, isopropyl alcohol) distribution to avoid metal ion contamination of wafer processes.

2. Energy and Metallurgy
Nuclear power plants: In cooling water and low-concentration radioactive wastewater systems, CPVC has better radiation aging resistance than ordinary plastic valves.
Metallurgical industry: Used in pickling lines (such as hydrochloric acid and nitric acid) and electroplating liquid pipelines, resistant to high temperature corrosion (CPVC can withstand media above 90°C).

3. Life sciences and public utilities
Pharmaceutical industry: In pharmaceutical purified water and water for injection (WFI) systems, UPVC/CPVC valves comply with FDA certification and have no risk of precipitates.
Drinking water (Safe Drinking Water): In municipal water supply systems, the inner wall of the valve is smooth and scale-free, eliminating secondary pollution such as lead and rust, and complies with NSF/ANSI 61 standards.

Summary of core advantages
The king of corrosion resistance: It can resist more than 90% of strong acids, strong alkalis and organic solvents, and its lifespan far exceeds that of metal valves.
Zero pollution risk: The material is inert, no metal ion precipitation, and fluid purity is guaranteed (such as semiconductor and pharmaceutical industries).
Lightweight and low cost: easy to install, maintenance cost is reduced by more than 50% compared with stainless steel valves.
